TXS0102 I2C Spannungs- Voltage- bidirectional Level Konverter

3,98

TXS0102 I2C Spannungs- Voltage- bidirectional Level Konverter 1,65-3,6V / 2,3-5,5V Modul Arduino

Lieferzeit: sofort

33 vorrätig

EAN Code N/A Artikelnummer: 284163880522-TXS0102 Kategorien: , Schlagwörter: , , ,

Beschreibung

TXS0102 I2C Spannungs- Voltage- bidirectional Level Konverter 1,65-3,6V / 2,3-5,5V Modul Arduino

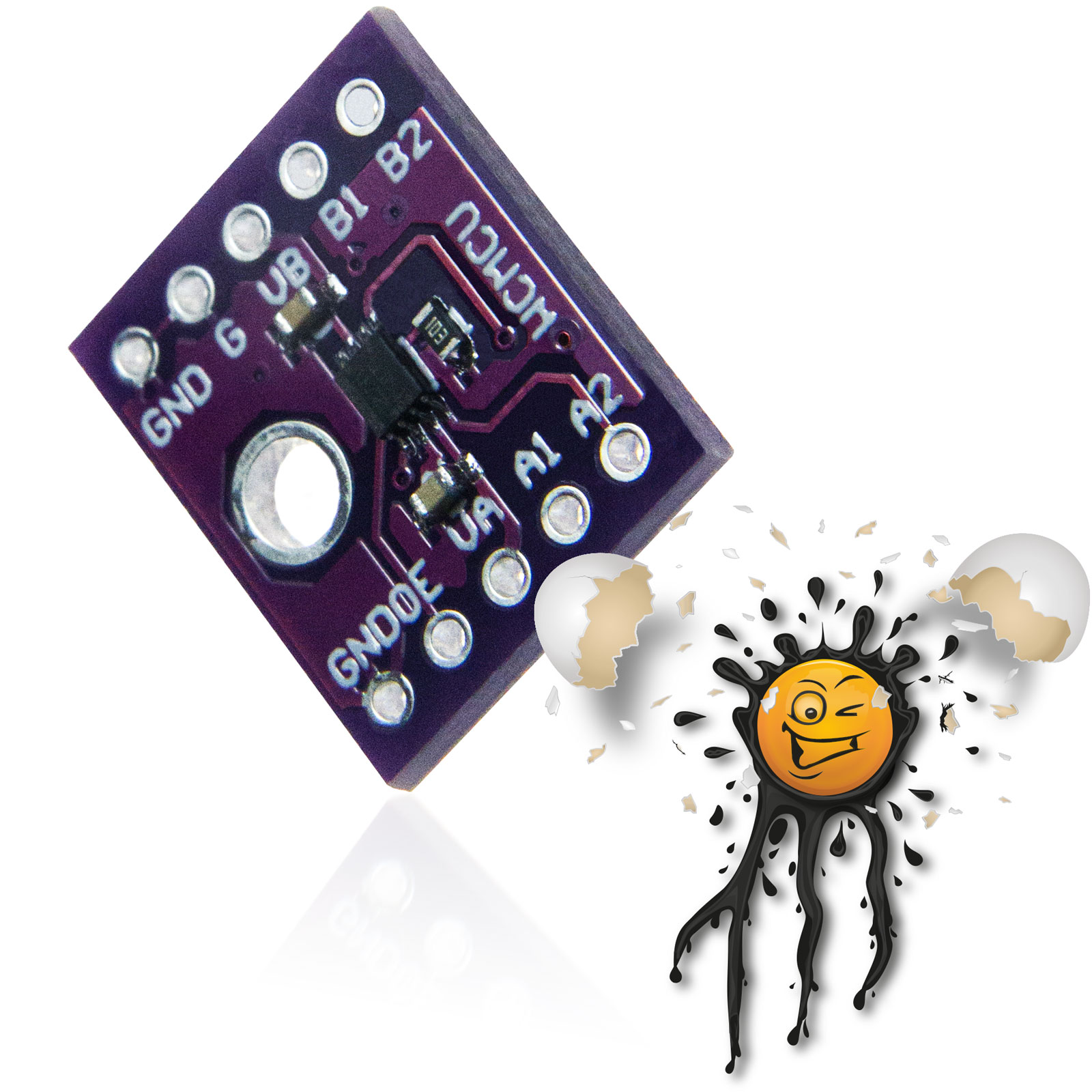

TXS0102 I2C Voltage Level Converter Module Board incl. Pinheader © androegg

TXS0102 Voltage Level Converter Module Board © androegg

I2C TXS0102 Voltage Level Converter Board © androegg

Das Spannungs- Level Konverter Modul basiert auf dem TXS0102 IC. Das TXS0102 Board ist ein bidirektionaler Spannungs- Level- Konverter. Im Vergleich zu typischen / Statischen Level Konvertern erlaubt das TXS102 Modul eine Levelangleichung mittels I2C Schnittstelle.

Das TXS0102 I2C Modul verfügt über 2 unabhängige Anschlüsse

  •  von 1,65V bis 3,6V (Low Side)

und

  • von 2,3V bis 5.5V (High Side)

Diesbezüglich ist das TXS0102 I2C Level Modul in Kombination mit MCU’s wie beispielsweise

  • ESP8266
  • ESP32
  • ESP8285
  • ARM
  • STM
  • STC
  • Arduino
  • Raspberry
  • usw.

einsetzbar.



The Level Converter Module is based on TXS0102. The TXS0102 is a bidirectional Voltage- Level- Converter IC. Compared to typical / static Level Converters the TXS0102 supports I2C interface.

The TXS0102 I2C Module supports 2 independend Voltage Rails :

  • from 1.65V to 3.6V (Low Side)
  • from 2.3V to 5.5V (High Side)





The PTXS0102 is perfect Voltage- Level conversion in Combination with a wide range of MCU’s, for example

  • ESP8266
  • ESP32
  • ESP8285
  • ARM
  • STM
  • STC
  • Arduino
  • Raspberry
  • and much more



TXS0102 Level Converter Module Features:

  • 2-bit bidirectional translator for SDA and SCL lines in mixed-mode I2C-bus applications
  • Standard-mode, Fast-mode, and Fast-mode Plus I2C-bus and SMBus compatible
  • No Direction-Control Signal Needed
  • Maximum Data Rates
    • 24 Mbps (Push Pull)
    • 2 Mbps (Open Drain)
  • Low Level 1.65 V to 3.6 V on A Port High Level 2.3 V to 5.5 V on B Port (VCCA ≤ VCCB)
