JSN-SR04T Ver. 3 TTL Ultraschall Distanz- Näherungs- Sensor Set

11,17

JSN-SR04T Ver. 3 TTL Ultraschall Distanz- Näherungs- Sensor Set 20-600 cm ± 2mm wasserdicht

Lieferzeit: sofort

46 vorrätig

Beschreibung

JSN-SR04T Version 3 TTL Ultraschall Distanz- Näherungs- Sensor Set 20-600 cm ± 2mm wasserdicht

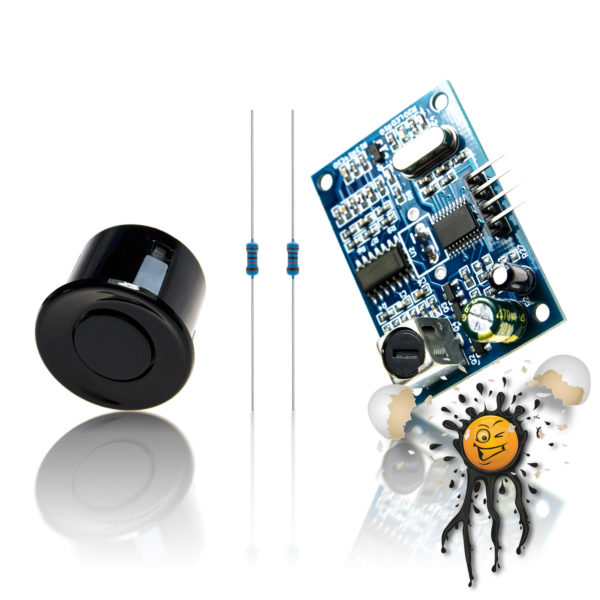

JSN-SR04 Version 3 Ultrasonic Sensor Set © androegg

JSN-SR04 Ultrasonic Sensor Driver Board © androegg

Das JSN-SR04T Version 3 Set beinhaltet:

  • 1 Stück wasserdichter Ultraschallsensor mit 2,5 Meter Anschlusskabel
  • 1 Stück JSN-SR04T Ultraschall Sensor Board Version 3
  • 5 Stück Widerstände (bedrahtet) + 5 Widerstände (SMD 603) für
    47KΩ für Mode 2 Betrieb
    120 KΩ für Mode 3 Betrieb
    200 KΩ für Mode 4 Betrieb
    360 KΩ für Mode 5 Betrieb
    470 KΩ für Mode 6 Betrieb



Der JSN-SR04T Ultraschall Sensor erlaubt eine Spannungsversorgung von 3,0 bis 5,5 und eignet sich für den Einsatz in Kombination mit

  • ESP8266
  • ESP32
  • ESP8285
  • ARM
  • STM
  • STC
  • Arduino
  • usw.

MCU’s.

Der JSN-SR04T Ultraschall Sensor Version erreicht

  • eine Auflösung von bis zu 1 mm
  • einen Messbereich von 20 – 600 cm
  • eine Tolleranz von bis zu 2 mm





Mittels den beiligenden Widerständen lassen sich neben dem Basis Modus (Mode 1) alternativ der Betriebsmodus 2-6 aktivieren.



The JSN-SR04T Version 3 Ultrasonic Distance Sensor Set incl.

  • 1 pcs. Ultrasonic Sensor Module with 2.5 meter wire
  • 1 pcs. JSN-SR04T Sensor Board Version 3
  • 5 pcs. Resistors (1/4 W) + 5 pcs. 603 SMD Resistors
    47KΩ mode 2
    120KΩ mode 3
    200KΩ mode 4
    360KΩ mode 5
    470KΩ mode 6



The JSN-SR04T Ultrasonic Sensor requires a power supply from 3.0V up to 5.5V and supports

  • ESP8266
  • ESP32
  • ESP8285
  • ARM
  • STM
  • STC
  • Arduino
  • etc.

based MCU’s.

The JSN-SR04T Version with a

  • Resolution up to 1 mm
  • Distance Range from 20 – 600 cm
  • ranging accuracy up to 2mm



The JSN-SR04T Version 3 supports up to 6 differnt operating modes.

Version 3 Operating Modes

Mode 1: MODE = open / no resistor, the basic working principle:
(1) using IO port TRIG trigger range, to a minimum of 10us high letter.
(2) module automatically send 8 40khz square wave, automatically detect whether there is a signal to return;
(3) a signal to return, through the IO port ECHO output a high level, high time is the duration of ultrasound from the launch to the return time. Test distance = (high time * speed of sound (340M / s)) / 2;
(4) module is triggered after the distance measurement, if you cannot receive the echo (the reason exceeds the measured range or the probe is not on the measured object), ECHO port will automatically become low after 60MS, marking the End of measurement, whether successful or not.
(5) LED indicator, LED non-power indicator, it will receive the signal after the module will be lit, then the module is working.

Mode 2: MODE = 47KΩ resistance:
(1) Serial output format for the TTL level, that: 100MS module for the cycle of automatic output distance value, the unit is mm. Serial baud rate: 9600, n, 8,1.
(2)
After the module is powered on, it will enter the working mode directly, and the range will be carried out every 100ms within the module and one frame will be output from the pin TX, including four 8-bit data.
(3)
The frame format is:
0XFF + H_DATA + L_DATA + SUM
1.0XFF: for a frame to start the data, used to judge;
2.H_DATA: the upper 8 bits of the distance data;
3.L_DATA: the lower 8 bits of the distance data;
4.SUM: data and, for the effect of its
0XFF + H_DATA + L_DATA = SUM (only low 8)
Note: H_DATA and L_DATA synthesize 16-bit data, that is, the distance in millimeters

Mode 3: MODE = 120KΩ resistance:
(1) After the module is powered on, the module enters standby mode. The serial output format is TTL level, serial port baud rate: 9600, n, 8,1. When the RX port receives the 0X55 instruction, the module starts a ranging and outputs one frame from the pin TX with four 8-bit data.
(2)
The frame format is:
0XFF + H_DATA + L_DATA + SUM
1.0XFF: for a frame to start the data, used to judge;
2.H_DATA: the upper 8 bits of the distance data;
3.L_DATA: the lower 8 bits of the distance data; 4.SUM: data and, for the effect of its
0XFF + H_DATA + L_DATA = SUM (only low 8)
Note: H_DATA and L_DATA synthesize 16-bit data, that is, the distance in millimeters Description: The module outputs the nearest distance value in the dead zone, and outputs 0 if the module does not measure the data or is out of range. LED indicator, LED non-power indicator, it will receive the 0X55 trigger signal after the module will be lit, then the module is working.

Mode 4: MODE = 200KΩ resistance:
High level (PWM) pulse width automatic output
Under the pulse width PWM automatic output, the module automatically measures at a period of 200ms, and outputs a pulse width high level corresponding to the distance after the measurement. Calculating distance mode reference mode 1

Mode 5: MODE = 360KΩ resistance:
low power consumption (PWM) high level pulse width controlled output
In low-power mode, the module’s shut-down watch dog is disabled. This module is suitable for battery-powered users. The static power consumption is less than 70UA. The working distance measurement method is the same as mode 1

Mode 6: MODE = 470KΩ resistance:
switch output

The module will set a threshold value at the factory, the default is 1.5 meters. The module performs ranging every 200ms. When the detected distance value of the target is less than the set threshold, the Echo pin outputs a high level. The currently detected distance value is greater than the set threshold, and the Echo pin outputs a low power. In order to improve the stability, the factory defaults that the distance detected by the target for two consecutive times is less than the set threshold. Signal, no driving ability. Transistor drive relays should be added during application.



JSN-SR04T Version 3 Ultrasonic Distance Sensor Features:

  • Ultrasonic Sensor waterproof incl. 2500 mm wire and connector
  • JSN-SR04 Version 2 Module Board
  • Version 2 incl. 2 resistors for TTL Mode (Mode 2 / 3)
  • Version 3 incl. 3 resistors for TTL Mode (Mode 2 / 3 / 4 / 5 / 6)
  • small size
  • easy to use
  • low voltage
  • low power consumption
  • high precision measurement
  • strong anti-interference
  • integrated closed waterproof cable probe
  • Operating Voltage DC 3.0-5.5V
  • Working current
    Less than 8mA
  • Probe frequency
    40KHz
  • Farthest range
    600cm
  • Recent range
    20cm
  • Distance accuracy
    +- 1cm
  • Resolution
    1mm
  • Measuring angle
    75 degree
  • Enter the trigger signal
    1,10uS above the TTL pulse
  • serial port to send instructions 0X55
    Output the echo signal
  • Output pulse width level signal, or TTL
  • Wiring3-5.5V (power positive)

    Trig (RX) RX

    Echo (output) TX

    GND (power supply negative)
