BMP180 GY-68 Luftdruck Barometer Sensor

1,89

BMP180 GY-68 Luftdruck Barometer Pressure Barometric I2C Sensor Modul ESP8266 Arduino

Lieferzeit: sofort

32 vorrätig

Beschreibung

BMP180 GY-68 Luftdruck Barometer Pressure Barometric I2C Sensor Modul ESP8266 Arduino

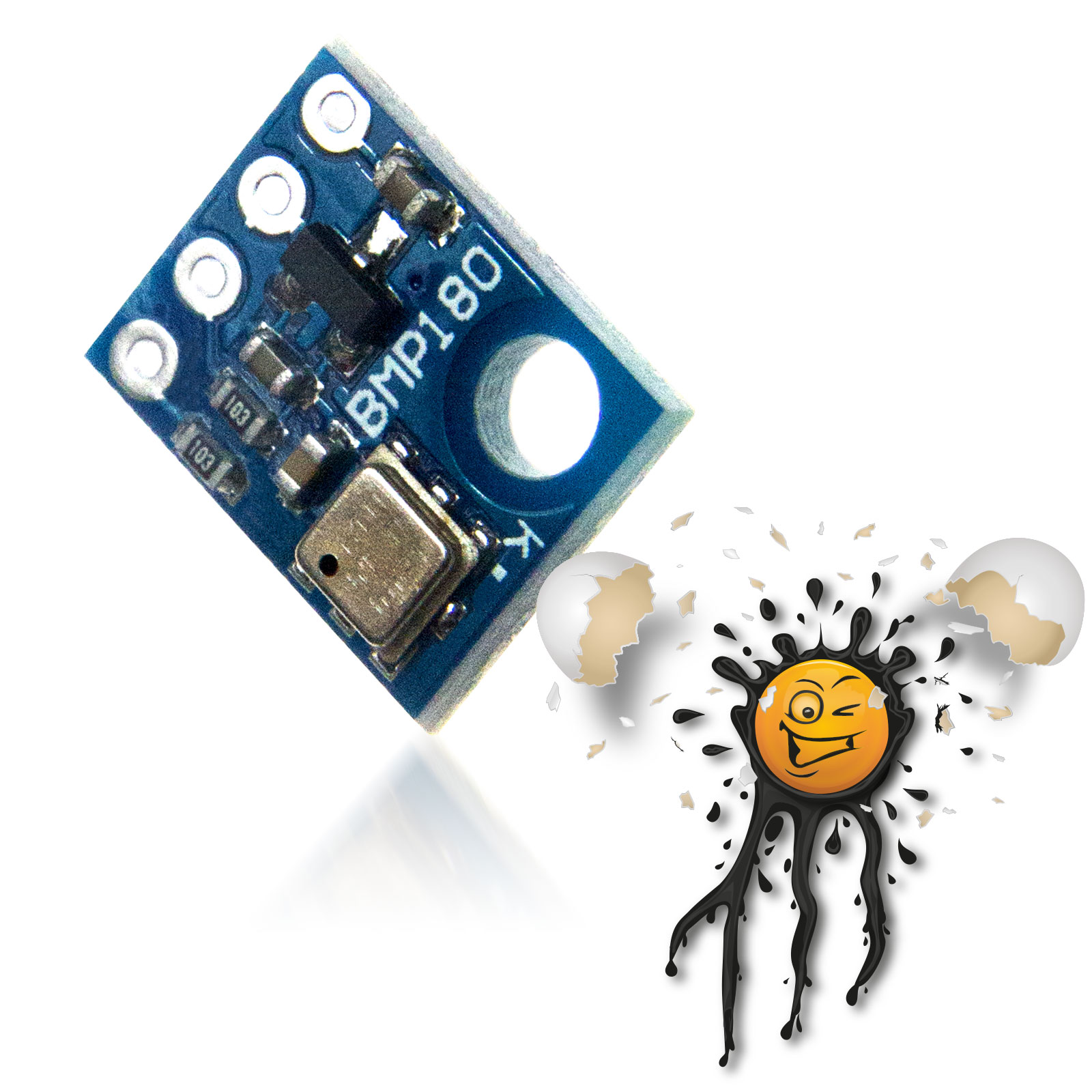

BMP180 barometric sensor module incl. Pinheader © androegg

BMP180 barometric Sensor Module © androegg

BMP180 I2C barometric Sensor Module © androegg

Der BMP180 ist ein Luftdruck- Sensor Modul. Der BMP180 erreicht mittels Piezo Technologie eine Messauflösung von bis zu 0,02hPa.

Die Ausgabe Messdaten erfolgt im 16-bit Datenformat

Das BMP180 Sensor Modul wird über den I2C Bus angesteuert und ist somit sowohl für den Einsatz mit einem ESP8266, als auch für den typischen Arduino Einsatz geeignet.



The BMP180 it’s barometric- sensor module. Within Piezo technology the BMP180 sensor module reaches a barometric resolution of 0.02hPa.

The BMP180 supports 16-bit Data Format.

With the integrated I2C interface the BMP180 Sensor Module is optimized for ESP8266, also Arduino.

BMP180 Sensor Module Features:

  • Operating pressure range 300 – 1100 hPa
  • Sensor supply voltage 1.8V – 3.6V (typ. 1.8V)
  • supports I2C
  • Supply current 5mA
  • Resolution of output barometric data (ultra high resolution mode) 0.02 hPa
  • Start-up time 2ms
  • Sampling rate 157 – 182 Hz.

Zusätzliche Informationen

CE Konformität

Declaration of Conformity RoHS

Konformitätserklärung RoHS

ManufacturerHersteller

Shenzhen Inventor Electronic Technology Co., Ltd.
uilding 2, Yingfeng Industrial Zone, Tantou Community, Songgang Street, Bao’an, Shenzhen, China,518105
+86-755-2916-1269

EU responsible person
EU verantwortliche Person

Beauty-Point Deutschland GmbH
Markus Hahl (Produktmanagement)
Raiffeisenstraße 2-4
83607 Holzkirchen Germany

Item-ID
Artikelnummer

284050473499-BMP180-Modul+Pins

Description
Beschreibung

BMP180 GY-68 Luftdruck Barometer Sensor

The product complies with the requirements and provisions of the 2011/65/EU directive.

Das Produkt entspricht den grundlegenden Bestimmungen der Richtlinie 2011/65/EU.

The product does not contain any of the restricted substances in concentrations and applications banned by the Directive 2011/65/EU.

Das Produkt überschreitet keinen Grenzwert der unten aufgeführten Substanzen gemäß der Richtlinie 2011/65/EU.

Substance
Substanz

Concentration
Grenzwert

Substance
Substanz

Concentration
Grenzwert

Lead
Blei

0.1%

Mercury
Quecksilber

0.1%

Hexavalent Chromium
Sechswertiges Chrom

0.1%

PBB (Polybrominated Biphenyls)
Polybromiertes Biphenyl (PBB)

0.1%

PBDE Polybrominated Diphenyl Ethers
PBDE Polybromiertes Diphenylether

0.1%

Cadmium
Cadmium

0.1%

DEHP (Bis (2-Ethylhexl) phthalate)
DEHP(Bis (2-Ethylhexl) Phalat)

0.1%

BBP (Benzyl butyl phthalate)
BBP(Benzylbutylphthalat)

0.1%

DBP (Dibutyl phthalate)
DBP (Dibutylphthalat)

0.1%

DIBP (Diisobutyl phthalate)
DIBP (Diisobutylphthalat)

0.1%

The supplier of the item listed above has informed Beauty-Point Deutschland GmbH that the product is “RoHS Compliant”.

Der Lieferant dieses Produktes hat Beauty-Point Deutschland GmbH bestätigt, dass das oben genannte Produkt „RoHS konform“ ist

Dokumente

Datenblatt

Benutzerhandbuch
