WeMos ESP8266 USB-C Modules and Adapter © androegg
WeMos ESP8266 USB-C Adapter Module © androegg
WeMos ESP8266 ESP-07 8Mbit Flash USB-C Adapter Module © androegg
WeMos ESP8266 ESP-07S 32Mbit Flash USB-C Adapter Module © androegg
WeMos ESP8266 USB-C Module CH340 USB TTL Converter © androegg
|
|
ESP8266 USB-C Modul wie folgt verfügbar:
- ESP8266 USB-C Adapter Modul, passend für ESP-12, ESP-12S, ESP-12E, ESP-12F, …
- ESP-07 USB-C Modul 8Mbit Flash
- ESP-07S USB-C Modul 32Mbit Flash
Das WeMos ESP8266 USB-C Module umfasst:
- 1 Stück WeMos ESP8266 Modul je nach Auswahl
- 2 Stück Pinleiste
- 2 Stück Buchsenleiste lang
- 2 Stück Buchsenleiste kurz
Konzipiert für den einfachen Einstieg in die IoT Welt. Es werden keine weiteren Bauteile wie Spannungskonverter, USB TTL Konverter benötigt, einfach den CH340 USB Treiber
|
ESP8266 USB-C Module available versions:
- ESP8266 USB-C Adapter Module for ESP-12, ESP-12S, ESP-12E, ESP-12F, …
- ESP-07 8Mbit Flash USB-C Module
- ESP-07S 32Mbit Flash USB-C Module

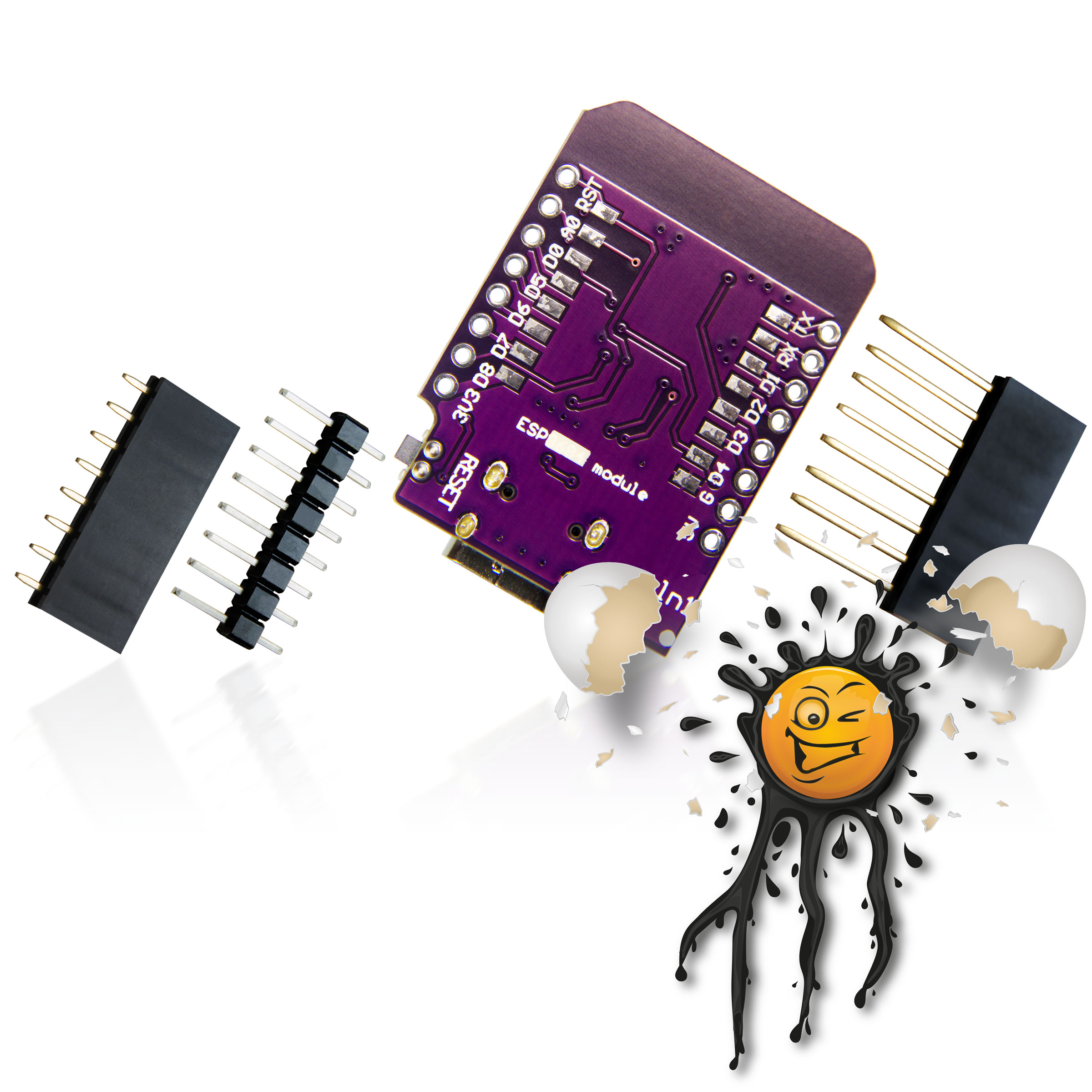

The WeMos ESP8266 USB-C Module incl.:
- 1 pcs. WeMos ESP8266 Module (selected version)
- 2 pcs. Pinheader
- 2 pcs. Pinheader female long
- 2 pcs. Pinheader female short
The Wemos ESP8266 USB-C Module is based on ESP-12F with integrated PCB Antenna and 32Mbit Flash.
No additional Peripherie required, simply
- download CH340 USB Driver from our website
- install CH340 Driver
- connect WeMos ESP8266 Module thru USB-C (USB wire not included) to Mac or PC
Wemos ESP8266 USB-C Module
Product Information:
The WeMos mini Module includes all features for ESP8266 based Solutions.
The WeMos mini Module supports all available Firmware / SDK such as:
- Espressif
- Tasmota
- ESPEasy
- ESPHome
- NodeMCU
- MicroPython
- Arduino
- Espruino
- and much more
|
WeMos ESP8266 USB-C Module Features:
- 3 versions available:
- ESP8266 USB-C Break Out Adapter Module (w/o ESP8266 Module)
- ESP-07 USB-C Break Out
- ESP-07S USB-C Break Out
- integrated USB TTL Converter CH340
- integrated Reset Button
- integrated Power Supply / Converter from 5V to 3,3 Volt
- USB-C Connector / Socket
ESP-07S Wemos Module Features:
- CPU / MPU:
- Frequency: 80 / 160 MHz.
- Risk: 32-bit
- Instruction Ram: 64 Kb
- Data Ram: 96 Kb
- SPI Flash:
- Flash memory: 32Mb
- clock frequency: 75 MHz.
- Page program: up to 256 bytes in 0.64ms (TYP)
Sector erase: 512Kb in 0.6s
- Bulk erase: 17 – 23 s
- Hardware write protection: protected area size defined by nonvolatile bits BP0, BP1, BP2
- Deep power-down: 1μA (TYP)
- Write Cycles: > 100,000 write cycles per sector
Data retention: > 20 Years
- 802.11 b/g/n protocol
- supports Wi-Fi Direct (P2P)
- soft-AP Integrated TCP/IP protocol stack
- external Antenna IPEX Connector
- +19.5 dBm output power in 802.11b mode
- Power down leakage current of < 10uA
- Integrated low power 32-bit MCU
- supported Interface
- SDIO 2.0
- SPI
- UART
- STBC
- MIMO
- A-MPDU & A-MSDU aggregation & 0.4μs guard interval
- Wake up and transmit packets in < 2ms
- Standby power consumption of < 1.0mW (DTIM3)
ESP-07 Wemos Module Features:
- CPU / MPU:
- Frequency: 80 / 160 MHz.
- Risk: 32-bit
- Instruction Ram: 64 Kb
- Data Ram: 96 Kb
- SPI Flash:
- Flash memory: 8Mb
- clock frequency: 75 MHz.
- Page program: up to 256 bytes in 0.64ms (TYP)
Sector erase: 512Kb in 0.6s
- Bulk erase: 17 – 23 s
- Hardware write protection: protected area size defined by nonvolatile bits BP0, BP1, BP2
- Deep power-down: 1μA (TYP)
- Write Cycles: > 100,000 write cycles per sector
Data retention: > 20 Years
- 802.11 b/g/n protocol
- supports Wi-Fi Direct (P2P)
- soft-AP Integrated TCP/IP protocol stack
- I-PEX Antenna Connector
- +25 dBm output power in 802.11b mode
- Power down leakage current of < 10uA
- Integrated low power 32-bit MCU
- supported Interface
- SDIO 2.0
- SPI
- UART
- STBC
- MIMO
- A-MPDU & A-MSDU aggregation & 0.4μs guard interval
- Wake up and transmit packets in < 2ms
- Standby power consumption of < 1.0mW (DTIM3)
|
