AI Thinker ESP-12S 32Mbit Flash

4,48

Original AI Thinker ESP-12S aktuelle Version mit 32Mbit FlashDer aktuellste ESP8266 mit integrierter Antenne.

Original AI Thinker ESP-12S actual Version with 32Mbit FlashThe actual ESP8266 with integrated Antenna.

Lieferzeit: sofort

100 vorrätig

Beschreibung

Original AI Thinker ESP-12S mit 32Mbit Flash WiFi Modul

Original ESP-12S 32 Mbit Flash © androegg

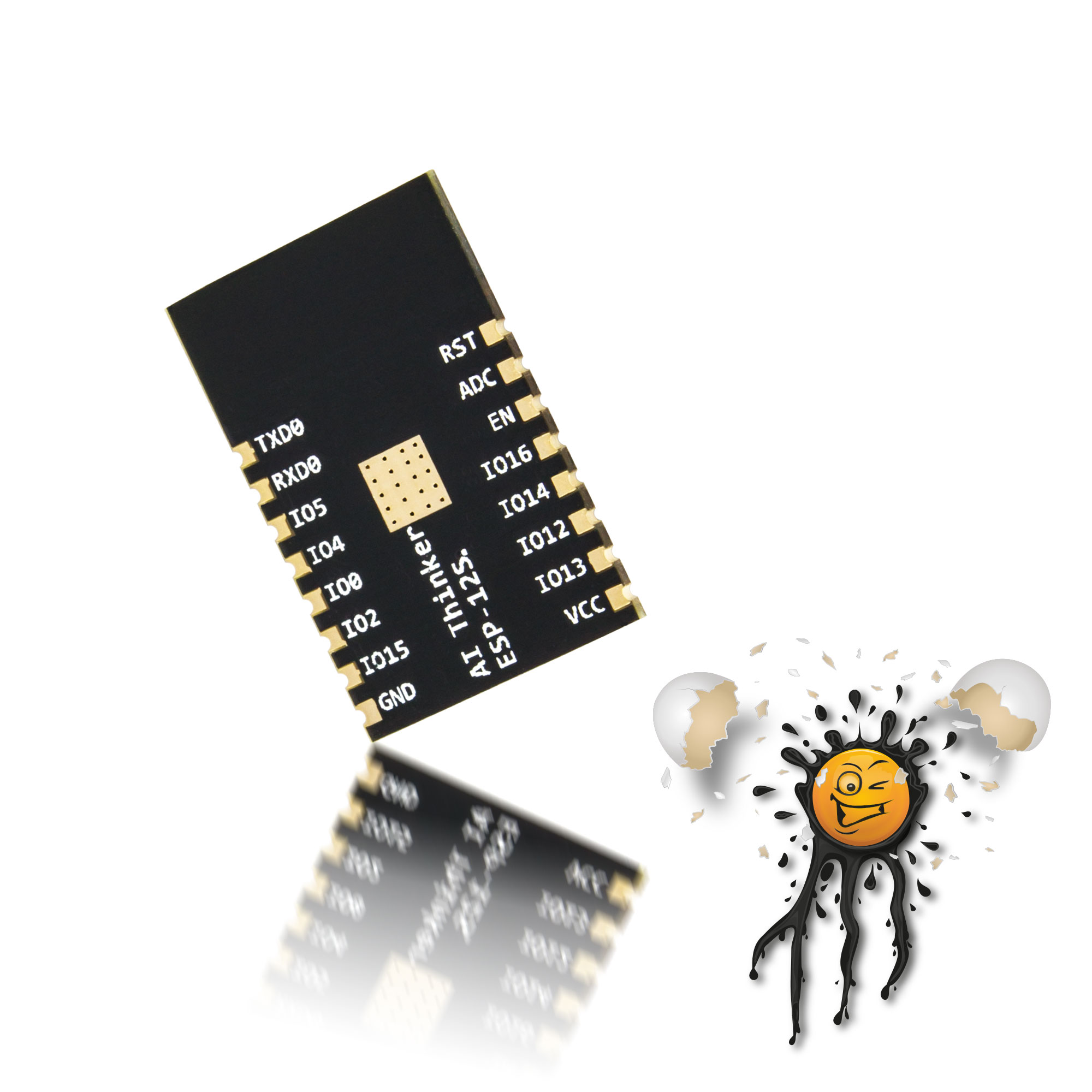

AI Thinker ESP12S details © androegg

ESP-12S Chip Info © androegg

ESP-07S Chip Info © androegg

Original AI Thinker ESP-12S aktuelle Version mit 32Mbit Flash.

Der aktuellste ESP8266 mit integrierter Antenne. Im Vergleich zu seinem Vorgänger dem ESP-12E wurde zugunsten der Stabilität auf das Ausführen der SPI Flash Schnittstelle verzichtet.

Zu beachten:

Beim Flashen des ESP12S sollte der Widerstandswert maximal 3,3KΩ betragen.

Zum Betrieb des ESP-12S werden folgende Bauteile benötigt.

  • 3 Widerstände max. 3,3KΩ
  • 3,3 Volt Netzteil min. 500mA
  • USB TTL Konverter

Der neue ESP-12S passt weiterhin auf den ESP8266 I/O Adapter.



Original AI Thinker ESP-12S actual Version with 32Mbit Flash.

The actual ESP8266 with integrated Antenna. For stability (compared to the previous, ESP-12E) the actual ESP-12S has an integrated SPI Flash interface.

Notes:

During Flashing use Resistor with max. 3,3KΩ.

For operating an ESP-12S Peripherie as follows requiered:

  • 3 Resistors 3,3KΩ
  • 3,3 Volt Power Supply min. 500mA
  • USB TTL Converter

The new ESP-12S is also usable in combination with the I/O Adapter.

Zusätzliche Informationen

CE Konformität

Declaration of Conformity RoHS

Konformitätserklärung RoHS

ManufacturerHersteller

Shenzhen Keweiming Electronics CO., Ltd.
Floor 5,Feiyada Building,Huaqiang North Street,Futian district,ShenZhen,China,518031
+86-755-83253367

EU responsible person
EU verantwortliche Person

Beauty-Point Deutschland GmbH
Markus Hahl (Produktmanagement)
Raiffeisenstraße 2-4
83607 Holzkirchen Germany

Item-ID
Artikelnummer

282247616243

Description
Beschreibung

AI Thinker ESP-12S 32Mbit Flash

The product complies with the requirements and provisions of the 2011/65/EU directive.

Das Produkt entspricht den grundlegenden Bestimmungen der Richtlinie 2011/65/EU.

The product does not contain any of the restricted substances in concentrations and applications banned by the Directive 2011/65/EU.

Das Produkt überschreitet keinen Grenzwert der unten aufgeführten Substanzen gemäß der Richtlinie 2011/65/EU.

Substance
Substanz

Concentration
Grenzwert

Substance
Substanz

Concentration
Grenzwert

Lead
Blei

0.1%

Mercury
Quecksilber

0.1%

Hexavalent Chromium
Sechswertiges Chrom

0.1%

PBB (Polybrominated Biphenyls)
Polybromiertes Biphenyl (PBB)

0.1%

PBDE Polybrominated Diphenyl Ethers
PBDE Polybromiertes Diphenylether

0.1%

Cadmium
Cadmium

0.1%

DEHP (Bis (2-Ethylhexl) phthalate)
DEHP(Bis (2-Ethylhexl) Phalat)

0.1%

BBP (Benzyl butyl phthalate)
BBP(Benzylbutylphthalat)

0.1%

DBP (Dibutyl phthalate)
DBP (Dibutylphthalat)

0.1%

DIBP (Diisobutyl phthalate)
DIBP (Diisobutylphthalat)

0.1%

The supplier of the item listed above has informed Beauty-Point Deutschland GmbH that the product is “RoHS Compliant”.

Der Lieferant dieses Produktes hat Beauty-Point Deutschland GmbH bestätigt, dass das oben genannte Produkt „RoHS konform“ ist

Dokumente

AI Thinker ESP-12S

Benutzerhandbuch
