HX-2S LiPo BMS 2S 10A Laderegler Lithium Phosphat 7,4V BMS Standard Balanced Charger Modul

HX-2S 10A LiPo Lithium Phosphate Battery Charger Modules © androegg

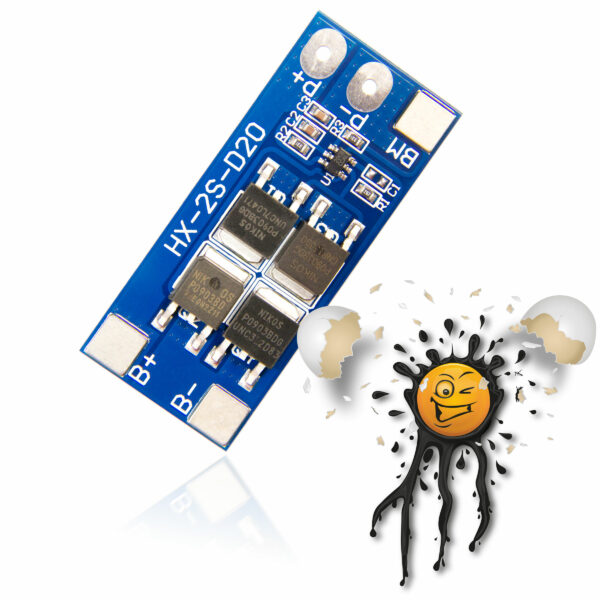

HX-2S-D20 Standard LiPo Lithium Phosphate Battery Charger Module © androegg

HX-2S-D20 Standard Battery Charger Module schematic © androegg

HX-2S-JH20 Balanced LiPo Lithium Iron Phosphate Battery Charger Module © androegg

HX-2S-JH20 Balanced Battery Charger Module schematic © androegg

• 10A Balanced Version HX-2S-JH20 Laderegler
• 10A Standard Version HX-2S-D20 Laderegler

LiFePO4 LiFe 2S 3,7V Akku Laderegler Modul

Das 2S Laderegler Modul eignet sich für 2 Stück LiPo, Lithium Phosphat 3,7V Akkus.

2S 7,4V LiFe LiFePO4 Battery Charger Modul available

• 10A Balanced Version HX-2S-JH20 Charger Module
• 10A Standard Version HX-2S-D20 Charger Module

3.7V LiFe LiFePo4 2S Charger Module

The 2S Charger Module supports 2 pcs. LiPo Lithium Phosphate 3.7V Batteries.

2S LiPO HX-2S Charger Module Features:

• Low supply current
• Equalizing current 56mA
• Charging Voltage 7.4V
• upper limit working current

• HX-2S-JH20 10 A ±1A
• HX-2S-D20 10A ±1A
• (Single Section) Overcharge detection voltage: 4.28 ± 0.0250 V
• (Single Section) Overcharge release voltage: 4.08 ± 0.05 V
• (Single Section) Over-discharge detection voltage: 2.9 ± 0.095V
• (Single Section) Over-discharge release voltage: 2.9 ± 0.1V
• Short circuit detection / delay self recovery
• Mos controlled battery charge and discharge
