3 Kanal Relais Modul + Netzteil 5V

9,78

Das 5V 3 Kanal Relais Set umfasst

1 Stück 3 Kanal 5V Relais Modul mit Schraubanschlüssen
1 Stück Steckernetzteil 230V / 5V 1A

Lieferzeit: sofort

Nicht vorrätig

Beschreibung

3 Kanal/Channel Relais Modul + Netzteil 5V High/Low Optokoppler Arduino ESP8266

5V 3 Channel Relais Module Set © androegg

5V 3 Channel Relais Module screw connectors

5V 3 Channel Relais Module screw connectors © androegg

5V 8 Channel Relais Module screw connectors

3 Channel Relais Module © androegg

3 Channel Relais Module

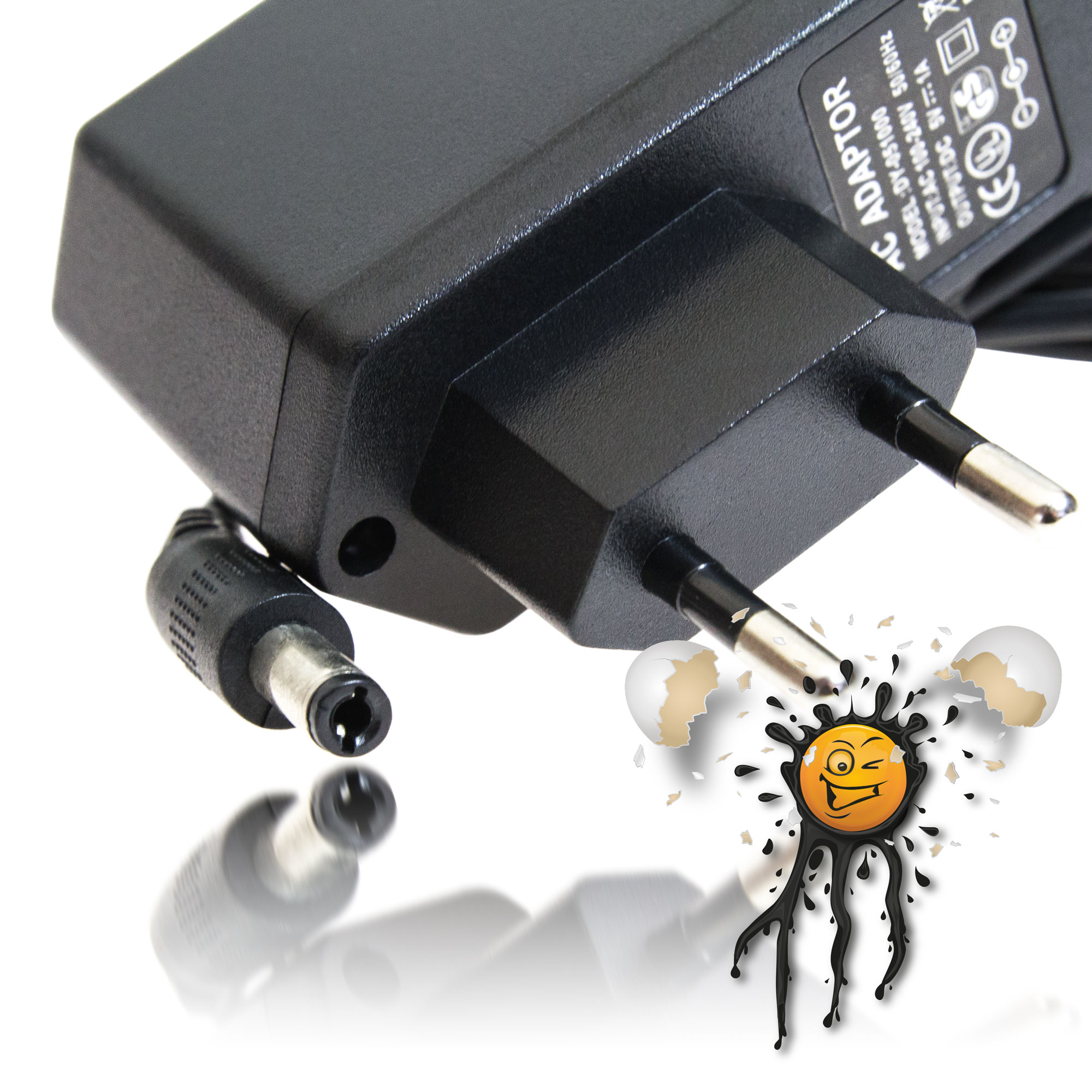

5V 1A Steckernetzteil 5.5×2.1 Hohlstecker © androegg

230V AC 5V DC 1A Power Supply

Das 5V 3 Kanal Relais Set umfasst

  • 1 Stück 3 Kanal 5V Relais Modul mit Schraubanschlüssen
  • 1 Stück Steckernetzteil 230V / 5V 1A



Das 3 Kanal 5 Volt Relais Modul schaltet

  • Wechselspannungen bis zu
    250V / 50Hz. max. 10A
    125V / 60Hz.
    max. 10A
  • Gleichspannungen bis zu
    30V max. 10A



Mittels Jumper kann das Relais Modul mittels 5V+ oder GND geschaltet werden.



The 5V 3 Channel Relais Set incl.

  • 1 pcs. 3 Channel Relais Module Board (with screw connector)
  • 1 pcs. 230V Power Supply 230V AC 5V DC 1A



3 Channel 5 Volt Relais switches

  • AC Voltage up to
    250V / 50Hz. max. 10A
    125V / 60Hz.
    max. 10A
  • DC Voltage up to
    30V max. 10A



With Jumper settings the Relais could be controlled with Low or Hig Level Input.





8 Channel Relay Module Set Features:

  • Coil Voltage 5V
  • Coil Sensitivity 0.36W
  • CCC Rating 250 VAC/10A 30VDC/10A
  • UL/CUL Rating 125VAC/10A 28VDC/10A
  • Nominal Current 71.4mA each Relay
  • Coil Resistance 70 (Ω) ±10%
  • Power Consumption 0.36W each Relay
  • incl. 230V AC 5V DC 1 A Power Supply
  • incl. Barrel Jack Adapter
