SC16IS750 RS232 UART MCU Erweiterungs Expansion Board

7,89

ESP8266 SC16IS750 RS232 UART MCU Erweiterungs Expansion Board SPI I2C Arduino

Lieferzeit: sofort

11 vorrätig

EAN Code N/A Artikelnummer: 283539228570 Kategorien: , , Schlagwörter: , , , , ,

Beschreibung

ESP8266 SC16IS750 RS232 UART MCU Erweiterungs Expansion Board SPI I2C Arduino

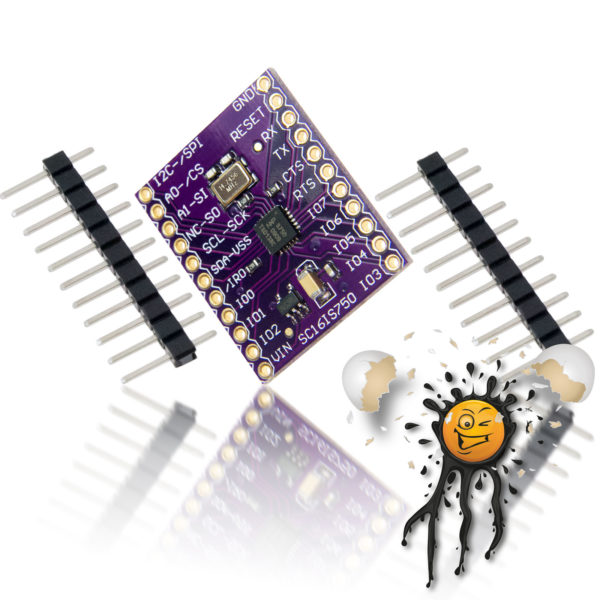

SC16IS750 UART GPIO Expansion Board incl. Pinheader © androegg

SC16IS750 SPI I2C to UART Expansion Board © androegg

SC16IS750 SPI / I2C to UART GPIO Board 2.54 mm pitch © androegg

Das SC16IS750 RS232 UART MCU Erweiterungs Board umfasst folgenden Lieferumfang

  • 1 Stück SC16IS750 RS232 UART MCU ErweiterungsBoard
  • 2 Stück Pinleisten 11 Pins



Das SC16IS750 RS232 UART MCU Erweiterungs Board erlaubt die einfache Erweiterung um

  • eine RS232 Schnittstelle
  • bis zu 8 frei programmierbare GPIO



Typische MCU’s wie

  • ESP8266
  • ESP32
  • ESP8285
  • ARM
  • STM
  • STC
  • Arduino
  • usw.

verfügen meist über eine begrenzte Anzahl von RS232 / UART Schnittstellen.

Mittels dem SC16IS750 RS232 UART MCU Erweiterungs Board kann die jeweilige MCU mittels

  • I2C
  • SPI

Schnittstelle entsprechend erweitert werden.



Das SC16IS750 RS232 UART MCU Erweiterungs Board verfügt über eine full-duplex UART Schnittstelle un unterstützt eine Datenrate von bis zu 5 Mbit/s. Das SC16IS750 RS232 UART MCU Erweiterungs Board verfügt über eine integrierten 64 Byte Sende- und Empfangs- Buffer.

The SC16IS750 RS232 UART MCU Expansion Board incl.

  • 1 pcs. SC16IS750 RS232 UART MCU Expansion Board
  • 2 pcs. Pinheader 11 Pins

Typical MCU’s

  • ESP8266
  • ESP32
  • ESP8285
  • ARM
  • STM
  • STC
  • Arduino

are limited if it comes to UART Interfaces.

The SC16IS750 is a slave device using

  • I2C
  • SPI

Interface to expand MCU’s.

Besides the UART Interface, the SC16IS750 Expansion Board supports also up to 8 GPIO.

The SC16IS750 Expansion Board support a full-duplex UART interface with a Baudrate up to 5 Mbit/s.

SC16IS750 UART MCU Expansion Board Features:

  • Single full-duplex UART
  • Selectable I2C-bus or SPI interface
  • 3.3 V or 2.5 V operation
  • 64 bytes FIFO (transmitter and receiver)
  • Fully compatible with industrial standard 16C450 and equivalent
  • Baud rates up to 5 Mbit/s
  • Auto hardware flow control using RTS/CTS
  • Auto software flow control with programmable Xon/Xoff characters
  • Single or double Xon/Xoff characters
  • Automatic RS-485 support (automatic slave address detection)
  • Up to 8 programmable I/O pins
  • RS-485 driver direction control via RTS signal
  • RS-485 driver direction control inversion
  • Built-in IrDA encoder and decoder interface
  • supports IrDA SIR with speeds up to 115.2 kbit/s
  • Software reset
  • Transmitter and receiver can be enabled/disabled independent of each other
  • Receive and Transmit FIFO levels
  • Programmable special character detection
  • Fully programmable character formatting
    5-bit, 6-bit, 7-bit or 8-bit character
    Even, odd, or no parity
    1, 1,5, or 2 stop bits
  • Line break generation and detection
  • Internal Loopback mode
  • Sleep current less than 30µA at 3.3 V
