KY-013 10KΩ NTC Thermistor Temperatur -55°C /+125°C Sensor

2,56

Arduino ESP8266 KY-013 10KΩ NTC Thermistor analog Temperatur -55°C /+125°C Sensor Modul

Lieferzeit: sofort

53 vorrätig

EAN Code N/A Artikelnummer: 283886956374-NTC-10KΩ-Modul Kategorie: Schlagwörter: , , , , , ,

Beschreibung

Arduino ESP8266 KY-013 10KΩ NTC Thermistor analog Temperatur -55°C /+125°C Sensor Modul

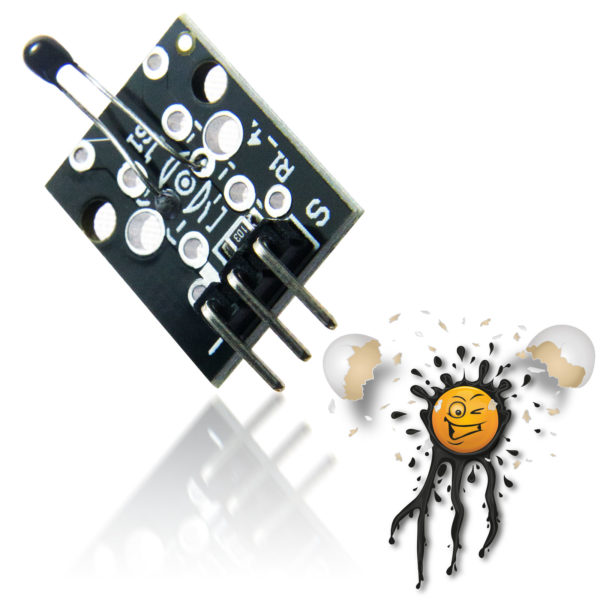

NTC analog Thermistor Module © androegg

NTC analog Thermistor Module © androegg

Das KY-013 NTC Thermistor Modul eignet sich zur Messung von Temperaturen im Bereich von -55°C bis +135°C.

Die Ausgabe des KY-013 Thermistor Moduls erfolgt analog und kann mittels ADC (Analog Digital Converter) interpretiert werden.





Eine entsprechende Linearität des elektrischen Widerstands wird dabei typischerweise, mittels Steinhart-Hart-Gleichung (ermittelten Koeffizienten) herbeigeführt.





The KY-013 Thermistor Module detecting Temperatures from -55°C up to +135°C.

The Signal Output of the Thermistor Module is analog and could be converted thru ADC (Analog Digital Converter)



To derive the temperature / linearity of the thermistor using coefficient the Steinhart-Hart equation.

NTC Thermistor Module Features:

  • Temperature range: -55°C up to +125°C (-67°F to 257°F)
  • Measurement Accuracy ± 0.5°C
  • Constant Resistor on board
  • 3 Pin Connector 2.54mm pitch
    1. GND
    2. VCC
    3. Signal

Zusätzliche Informationen

CE Konformität

Declaration of Conformity RoHS

Konformitätserklärung RoHS

ManufacturerHersteller

Shenzhen Inventor Electronic Technology Co., Ltd.
uilding 2, Yingfeng Industrial Zone, Tantou Community, Songgang Street, Bao’an, Shenzhen, China,518105
+86-755-2916-1269

EU responsible person
EU verantwortliche Person

Beauty-Point Deutschland GmbH
Markus Hahl (Produktmanagement)
Raiffeisenstraße 2-4
83607 Holzkirchen Germany

Item-ID
Artikelnummer

283886956374-NTC-10KΩ-Modul

Description
Beschreibung

KY-013 10KΩ NTC Thermistor Temperatur -55°C /+125°C Sensor

The product complies with the requirements and provisions of the 2011/65/EU directive.

Das Produkt entspricht den grundlegenden Bestimmungen der Richtlinie 2011/65/EU.

The product does not contain any of the restricted substances in concentrations and applications banned by the Directive 2011/65/EU.

Das Produkt überschreitet keinen Grenzwert der unten aufgeführten Substanzen gemäß der Richtlinie 2011/65/EU.

Substance
Substanz

Concentration
Grenzwert

Substance
Substanz

Concentration
Grenzwert

Lead
Blei

0.1%

Mercury
Quecksilber

0.1%

Hexavalent Chromium
Sechswertiges Chrom

0.1%

PBB (Polybrominated Biphenyls)
Polybromiertes Biphenyl (PBB)

0.1%

PBDE Polybrominated Diphenyl Ethers
PBDE Polybromiertes Diphenylether

0.1%

Cadmium
Cadmium

0.1%

DEHP (Bis (2-Ethylhexl) phthalate)
DEHP(Bis (2-Ethylhexl) Phalat)

0.1%

BBP (Benzyl butyl phthalate)
BBP(Benzylbutylphthalat)

0.1%

DBP (Dibutyl phthalate)
DBP (Dibutylphthalat)

0.1%

DIBP (Diisobutyl phthalate)
DIBP (Diisobutylphthalat)

0.1%

The supplier of the item listed above has informed Beauty-Point Deutschland GmbH that the product is “RoHS Compliant”.

Der Lieferant dieses Produktes hat Beauty-Point Deutschland GmbH bestätigt, dass das oben genannte Produkt „RoHS konform“ ist

Dokumente

Datenblatt

Benutzerhandbuch
