5V Laser Modul 5mW 650nm NIR nahes Infrarot ESP8266 Arduino Raspberry Pi

5V NIR 650nm Laser Diode Modul 5mW © androegg

Dot 650nm Laser Diode Module 5V © androegg

In Kombination mit unserem 650 nm Laser Sensor Set läßt sich besipielsweise eine Raumüberwachung mittels Lichtschranke realisieren.

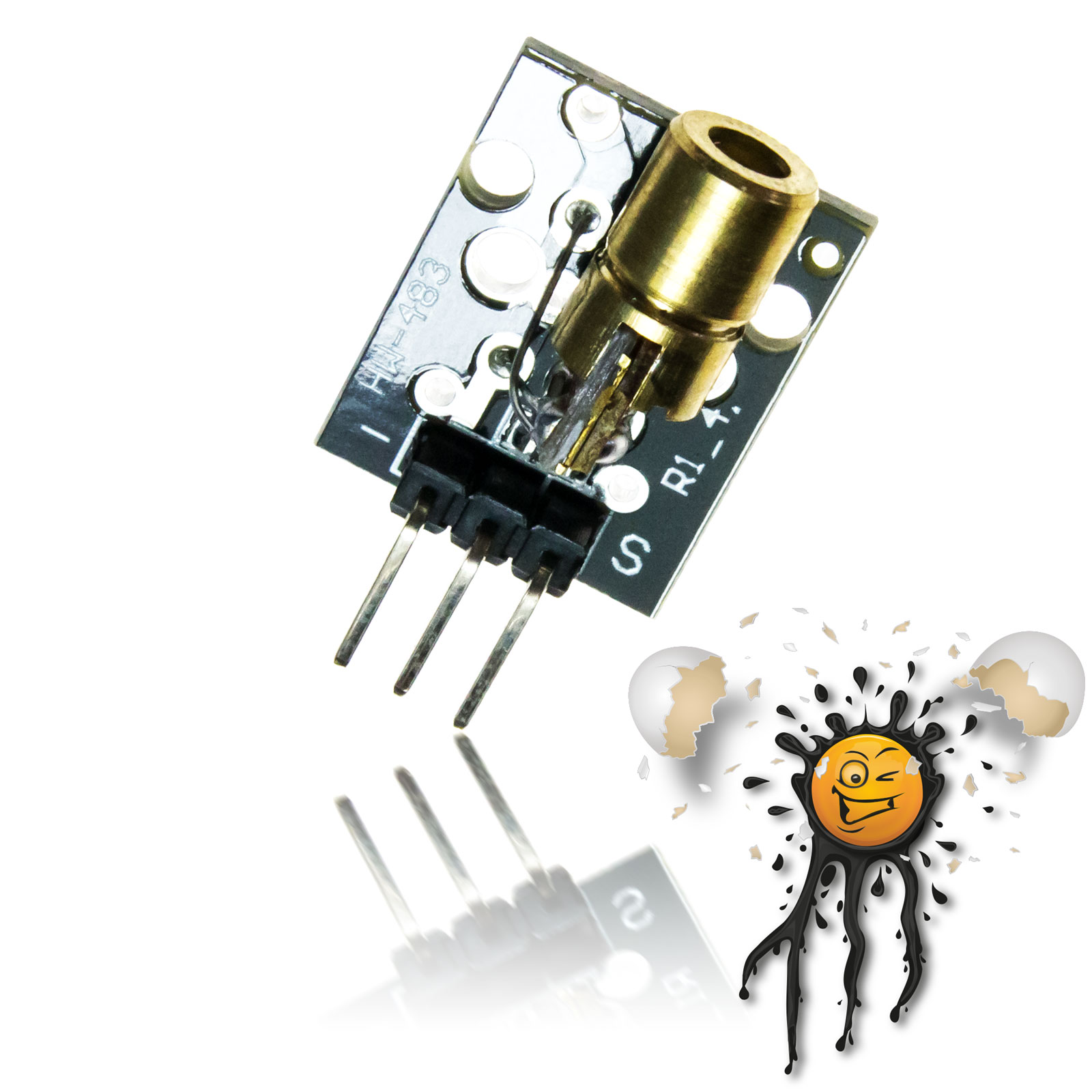

650nm NIR Laser Diode Modul

Zu beachten:

Beim Umgang und Einsatz von Laser Dioden muss stets auf entsprechenden Augenschutz geachtet werden.

The 5V 650nm Laser Diode Module in compact package.

The 5V 650nm Laser Diode its perfect in Combination with our 650nm Laser Sensor Set to build a infrared light barrier.

650nm NIR Laser Diode Module

Notes:

During testing please take care about eye protection.

650nm 5V Laser Diode Features:

• Diode Diameter 6 mm
• 3 Pin Connector
  GND / 5V-
  GND
  S / 5V+
• Working life: more than 2000 hours
• Beam Angle deviation ±3°
• Spot mode:
  dot facula,
  continuous output
• Beam divergence
  8-12° parallel
  23-32° perpendicular
• Laser wavelength: NIR 650nm (Red)
• Copper Head Diameter is 6mm
• Light power: <5mW
• Supply Voltage: 5VDC
• Operating Current: 30mA
• Operating temperature: -36 – 65
• Dimensions: 20 x 16 x 9 mm
