433MHz. ASK Funkmodul RF SYN115 SYN480R high performance Transmitter Receiver Set 1,8-3,6V ESP8266 Arduino

433 MHz. RF ASK SYN480R SYN115 Module Set incl. Antenna © androegg

433 MHz. RF ASK SYN480 module © androegg

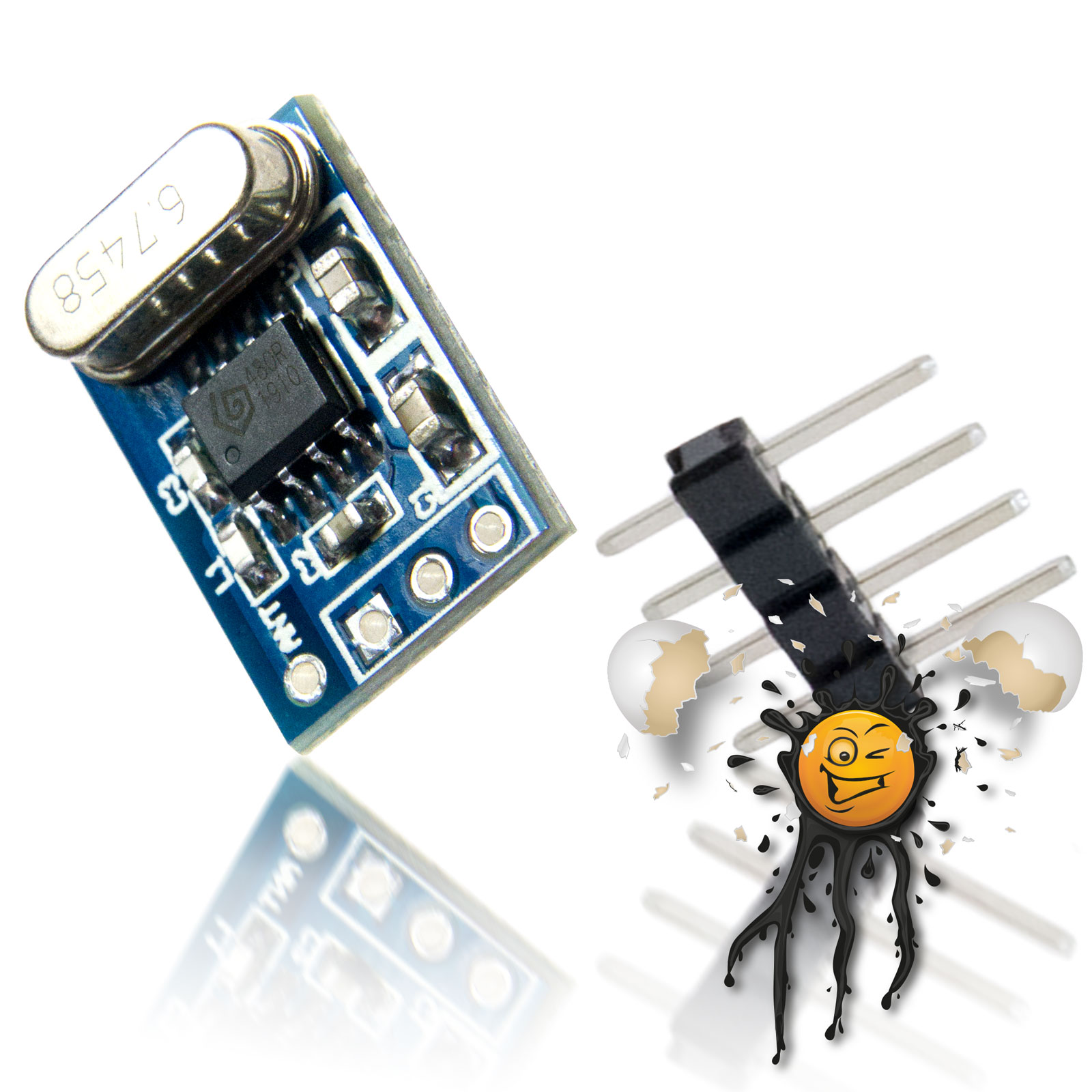

433 MHz. RF ASK SYN115 module © androegg

Das 433 MHz. RF ASK Funkmodul Set ist wie folgt verfügbar

• 433 MHz. RF ASK Funkmodul Set inkl. Antennen bestehend aus
  1 Stück SYN115 ASK Transmitter Modul 433 MHz
  1 Stück SYN480R ASK Empfänger
  Modul
  2 Stück Federantennen
  2 Stück Pinleiste 4-polig

• 433 MHz. RF ASK Sender Funkmodul bestehend aus
  1 Stück SYN115 ASK Sender Modul 433 MHz
  1 Stück Pinleiste 4-polig

• 433 MHz. RF ASK Empfänger Funkmodul bestehend aus
  1 Stück SYN480R ASK Empfänger Modul 433 MHz
  1 Stück Pinleiste 4-polig

433 MHz.RF AKS FunkModul Set

Das 433 MHz. Transmitter Modul ist ein high performance ASK Transmitter / Empfänger und erreicht eine Bandbreite von bis zu 10kbps (Manchester Encoding).

The 433 MHz. RF ASK Module is available as follows

• 433 MHz. RF ASK Transmitter Module 433 MHz Set
  1 pcs. SYN115 ASK Transmitter Module 433 MHz
  1 pcs. SYN480R ASK Receiver Module2 pcs. Spring Antenna
  2 pcs.
  Pinheader 4 Pins

• 433 MHz. RF ASK Transmitter Module
  1 pcs. pcs. SYN115 ASK Transmitter Module 433 MHz
  1 pcs.
  Pinheader 4 Pins

• 433 MHz. RF ASK Receiver Module
  1 pcs. pcs. SYN480R ASK Receiver Module 433 MHz
  1 pcs.
  Pinheader 4 Pins

433 MHz. ASK RF Module Set

The 433 MHz. RF Module is a high performance ASK RF Transmitter / Receiver Module with a data rate up to 10kbps (Manchester Encoding)

ASK RF SYN115 Transmitter Module Features:

• Working Voltage 1.8V – 3.6V
• supports ASK / OOK (Amplitude Shift Keying/On-Off Keyed)
• transmitting frequency: 433 MHz
• output power: <10 dBm
• trasnmission rate: <10 kbps
• Operating temperature -40°C – +80°C
• data rate up to 10 kbps (Manchester Encoding)
• Power down modes and wake-up functions to reduce power consumption
• ultra small form factor 15 x 11.8 mm

ASK RF SYN480R Receiver Module Features:

• Working Voltage 3.3V – 5.5V
• supports ASK / OOK (Amplitude Shift Keying/On-Off Keyed)
• transmitting frequency: 433 MHz
• receiver sensitivity: -107dBm
• Operating temperature -40°C – +80°C
• data rate up to 10 kbps (Manchester Encoding)
• Power down modes and wake-up functions to reduce power consumption
• ultra small form factor 17.2 x 11.8 mm
