4 dBi PCB WLan WiFi Antenne 2.4-2.5 GHz

3,38

ESP8266 IoT 4 dBi PCB WLan WiFi Antenne 2.4-2.5 GHz 120 mm UFL I-PEX Adapter Arduino

Lieferzeit: sofort

34 vorrätig

Beschreibung

ESP8266 IoT 4 dBi PCB WLan WiFi Antenne 2.4-2.5 GHz 120 mm UFL I-PEX Adapter Arduino

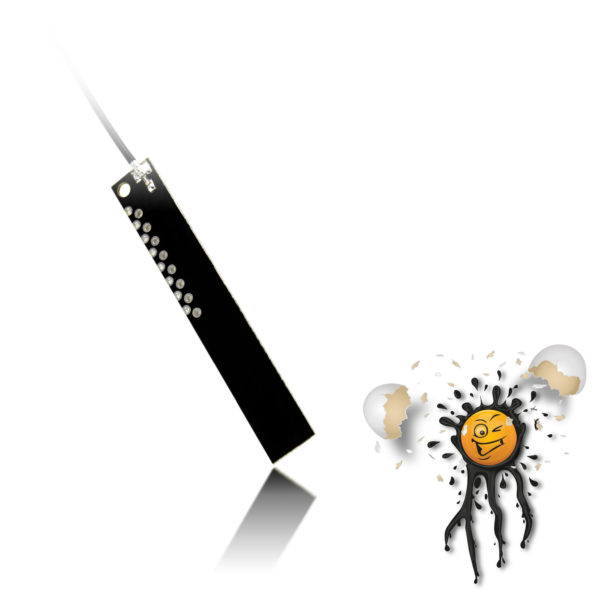

IoT Module 4dbi PCB Antenna © androegg

IoT WiFi Antenna UFL I-PEX Connector © androegg

PCB Antenna details © androegg

Die 4 dBi PCB Antenne eignet sich ideal für den IoT WLan / WiFi Module mit einem I-Pex Anschluss. Trotz der kleinen Abmesssungen erreicht die PCB WLan Antenne eine Signalverstärkung von 4 dBi.

Auf der Rückseite der IoT WLan Antenne ist bereits ein doppelseitiger Hafstreifen, zur einfachen Befestigung aufgebracht. Der Anschluss der PCB WLan Antenne erfolgt mittels einem I-PEX Anschluss (z.B. passend für den ESP-07, ESP-07S, Router Module, usw.).

The 4 dBi PCB Antenna is optimized for IoT WiFi Modules with I-Pex Socket. The IoT Antenna reach a signal gain up to 4 dBi.

On Bottomside the PCB Antenna has a double faced adhesive tape.

The IoT Antenna is connectable to an IoT Device by I-PEX connector. The PCB Antenna is a perfect Combination for ESP-07, ESP-07S, Router Boards, IoT WiFi Modules and much more.

IoT PCB Antenna Features:

  • Frequency Range 2.4-2.5 GHz
  • Impendance 50 Ω
  • VSWR 1.92:1 max
  • Return Loss 10 db max
  • Gain Peak up to 4 dBi
  • Cable Loss 0.3 dBi max
  • Admitted Power 2W
  • Cable Length 120 ± 3 mm
  • Connector I-PEX



Zusätzliche Informationen

CE Konformität

Declaration of Conformity RoHS

Konformitätserklärung RoHS

ManufacturerHersteller

Shenzhen Keweiming Electronics CO., Ltd.
Floor 5,Feiyada Building,Huaqiang North Street,Futian district,ShenZhen,China,518031
+86-755-83253367

EU responsible person
EU verantwortliche Person

Beauty-Point Deutschland GmbH
Markus Hahl (Produktmanagement)
Raiffeisenstraße 2-4
83607 Holzkirchen Germany

Item-ID
Artikelnummer

283471911585

Description
Beschreibung

4 dBi PCB WLan WiFi Antenne 2.4-2.5 GHz

The product complies with the requirements and provisions of the 2011/65/EU directive.

Das Produkt entspricht den grundlegenden Bestimmungen der Richtlinie 2011/65/EU.

The product does not contain any of the restricted substances in concentrations and applications banned by the Directive 2011/65/EU.

Das Produkt überschreitet keinen Grenzwert der unten aufgeführten Substanzen gemäß der Richtlinie 2011/65/EU.

Substance
Substanz

Concentration
Grenzwert

Substance
Substanz

Concentration
Grenzwert

Lead
Blei

0.1%

Mercury
Quecksilber

0.1%

Hexavalent Chromium
Sechswertiges Chrom

0.1%

PBB (Polybrominated Biphenyls)
Polybromiertes Biphenyl (PBB)

0.1%

PBDE Polybrominated Diphenyl Ethers
PBDE Polybromiertes Diphenylether

0.1%

Cadmium
Cadmium

0.1%

DEHP (Bis (2-Ethylhexl) phthalate)
DEHP(Bis (2-Ethylhexl) Phalat)

0.1%

BBP (Benzyl butyl phthalate)
BBP(Benzylbutylphthalat)

0.1%

DBP (Dibutyl phthalate)
DBP (Dibutylphthalat)

0.1%

DIBP (Diisobutyl phthalate)
DIBP (Diisobutylphthalat)

0.1%

The supplier of the item listed above has informed Beauty-Point Deutschland GmbH that the product is “RoHS Compliant”.

Der Lieferant dieses Produktes hat Beauty-Point Deutschland GmbH bestätigt, dass das oben genannte Produkt „RoHS konform“ ist
